ABS in Bikes: Enhance Your Safety and Control on Two Wheels

Highlights of the Article

1. ABS uses sensors and a hydraulic system to prevent wheel lockup during braking, boosting rider control and safety.
2. ABS helps motorcycles stop shorter, especially on slick roads, by allowing for maximum braking force without locked wheels.
3. ABS improves motorcycle stability by preventing skids, even during emergency braking manoeuvres.
4. With ABS, riders feel more confident knowing the system assists in critical braking situations.
5. ABS is becoming standard equipment, making motorcycles safer and more accessible for all riders.

This is where Anti-lock Braking Systems i,e ABS come into play, revolutionizing motorcycle safety and significantly reducing the chances of accidents.

Let's explore this article to expand our understanding of the ABS

What is an ABS System?

ABS is a sophisticated electronic system that prevents the wheels of a motorcycle from locking up during braking.

When a wheel locks, it loses traction and skids, causing the rider to lose control. ABS uses sensors to monitor wheel speed and automatically modulates the brake pressure, preventing the wheels from locking and maintaining optimal grip.

This allows the rider to maintain steering control and avoid dangerous skids, even in challenging conditions.

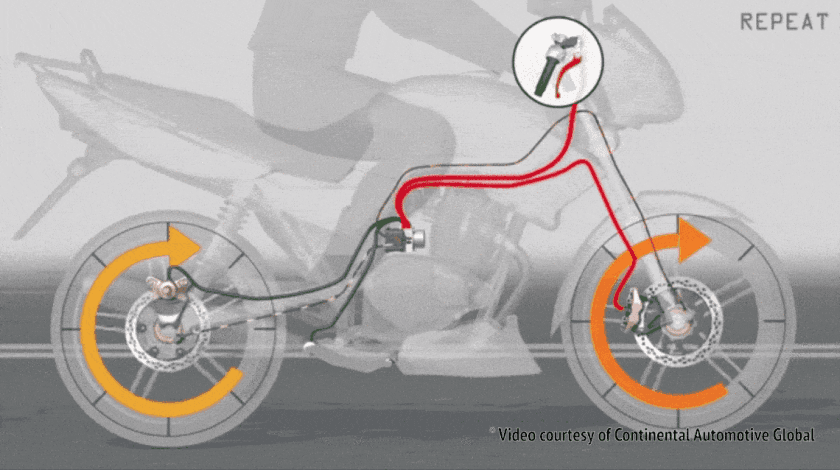

How Does ABS Work?

The ABS system comprises several components:

• Wheel speed sensors: These sensors monitor the rotational speed of each wheel.
• Electronic control unit (ECU): The ECU receives data from the wheel speed sensors and controls the hydraulic system.
• Hydraulic unit: This unit modulates the brake pressure based on the ECU's instructions.

When the rider applies the brakes, the wheel speed sensors detect any sudden deceleration.

If a wheel is at risk of locking, the ECU sends a signal to the hydraulic unit, which reduces the brake pressure momentarily.

This prevents the wheel from locking and allows it to regain traction. The process repeats rapidly, ensuring the wheels maintain optimal grip and the rider retains control.

Traditional Braking System vs. ABS System:

Traditional braking systems rely solely on the rider's input and cannot prevent wheel lockup.

This can lead to skids, loss of control, and potentially serious accidents. ABS, on the other hand, actively intervenes to prevent wheel lockup, even under hard braking.

This significantly improves braking performance and stability, especially on slippery surfaces like wet roads or loose gravel.

Break Down of Traditional Braking System vs. ABS System

Here's a breakdown of the key differences between traditional braking systems and Anti-Lock Braking Systems (ABS):

Traditional Braking System

• Simpler design with a direct connection between the brake pedal and the wheels.
• When the pedal is pressed, the brake pads clamp down on the discs (rotors) with increasing force as you press harder.
• If the brakes are applied too forcefully, the wheels can lock up, causing the tyres to skid and lose traction.
• Skidding makes steering difficult and can lead to a loss of control, especially on slippery surfaces.
• Requires the driver to pump the brakes rapidly to prevent locking (threshold braking) - a technique that can be difficult to master in stressful situations.

ABS (Anti-Lock Braking System)

• More complex system with wheel speed sensors, a controller unit, and hydraulic valves.
• Sensors constantly monitor the speed of each wheel.
• If a sensor detects a wheel about to lock up (slowing down too rapidly), the ABS controller reduces brake pressure to that wheel momentarily.
• This prevents the wheel from locking and maintains traction, allowing the car to continue steering and manoeuvre even during hard braking.
• The controller rapidly pulses the brakes on and off, preventing complete lockup and maximizing stopping power.
• Driver simply needs to apply firm, continuous pressure to the brake pedal during emergency braking. The ABS system does the rest.

Advantages of ABS System:

• Enhanced safety: ABS reduces the risk of accidents by preventing wheel lockup and maintaining rider control during braking.
• Shorter stopping distances: ABS allows for more efficient braking, resulting in shorter stopping distances, especially on slippery surfaces.
• Improved stability: ABS prevents skids and maintains stability, even during emergency braking situations.
• Increased rider confidence: Knowing that the ABS system is there to assist in critical situations boosts rider confidence and allows them to focus on the road.
• Reduced risk of high-side crashes: High-siding is a dangerous type of motorcycle accident that can occur when the rear wheel loses traction during braking. ABS helps prevent high-sides by maintaining rear wheel traction and preventing sudden deceleration.
• Improved wet weather performance: ABS is particularly beneficial in wet conditions, where the risk of wheel lockup is significantly higher. By preventing wheel lockup, ABS allows riders to maintain control and brake safely on wet roads.
• Reduced fatigue: ABS can help reduce rider fatigue by minimizing the need for constant brake pressure adjustments. This is especially beneficial on long rides or in challenging riding conditions.

Different Types of ABS Systems:

• Single-channel ABS: It is a basic braking system that manages the pressure applied to just one wheel, usually the front one. This setup helps prevent wheel lock-up during sudden braking, but it doesn't offer the same level of control and stability as dual-channel ABS.
• Dual-channel ABS: On the other hand, is a more advanced system that independently regulates the braking pressure on both wheels. This ensures better handling and traction, especially in demanding road conditions.
• Combined ABS: Takes safety and performance up a notch by integrating ABS with other electronic aids like traction control and cornering ABS. This comprehensive system not only prevents wheel skidding during braking but also assists in maintaining stability while navigating corners, leading to a smoother and safer riding experience overall.

Advanced ABS Features:

• Cornering ABS: This system takes into account the lean angle of the motorcycle and adjusts the braking pressure accordingly, allowing riders to brake safely even while leaning into corners.
• Off-road ABS: This system is designed for off-road riding and allows for a certain degree of wheel slip, which can be beneficial on loose surfaces.
• Rear-wheel lift mitigation: This system prevents the rear wheel from lifting off the ground during hard braking, improving stability and control.

ABS Maintenance:

ABS systems require minimal maintenance. However, it is important to have the system checked regularly by a qualified mechanic to ensure it is functioning properly.

ABS Myths and Misconceptions:

• Myth: ABS increases stopping distances.
• Fact: ABS can reduce stopping distances, especially on slippery surfaces.
• Myth: ABS makes riders lazy and less skilled.
• Fact: ABS is a safety feature that assists riders in maintaining control, not a replacement for proper riding skills.
• Myth: ABS is only necessary for high-performance motorcycles.
• Fact: ABS is beneficial for all motorcycles, regardless of their performance level.

Future of ABS in Motorcycles:

The future of ABS in motorcycles is bright. As technology continues to advance, ABS systems are becoming more sophisticated and affordable. It is expected that ABS will become standard equipment on most motorcycles soon, further enhancing safety and rider confidence.

Get ready for something awesome! OTO is bringing you tons of great stuff – buckle up for the ride of benefits!

Popular Brands with ABS System:

The adoption of ABS in motorcycles is rapidly increasing, and many popular models now come equipped with this life-saving technology. Some examples include:

• Honda: This popular sportbike features a dual-channel ABS system for enhanced braking performance.
• Yamaha: This entry-level sportbike offers ABS as standard, making it a safe and accessible option for new riders.
• TVS: This lightweight and agile sportbike comes equipped with ABS, providing confidence-inspiring braking.
• Suzuki: This powerful and versatile streetfighter features a sophisticated ABS system for maximum control.
• Royal Enfield: This adventure-ready motorcycle boasts a comprehensive ABS system for tackling challenging terrain.

Next Reads: More Articles!

• Why Do EV Batteries Catch Fire? How to Prevent EV Battery Fires
• Pros and Cons of Electric Two-Wheeler Ownership in India

Conclusion:

ABS is a valuable safety feature that can significantly enhance the riding experience and reduce the risk of accidents. As technology advances and awareness grows, ABS is becoming increasingly common in motorcycles, making them safer and more accessible for riders of all skill levels.

If you are considering purchasing a new motorcycle, prioritize models equipped with ABS to ensure your safety and maximize your riding enjoyment.
